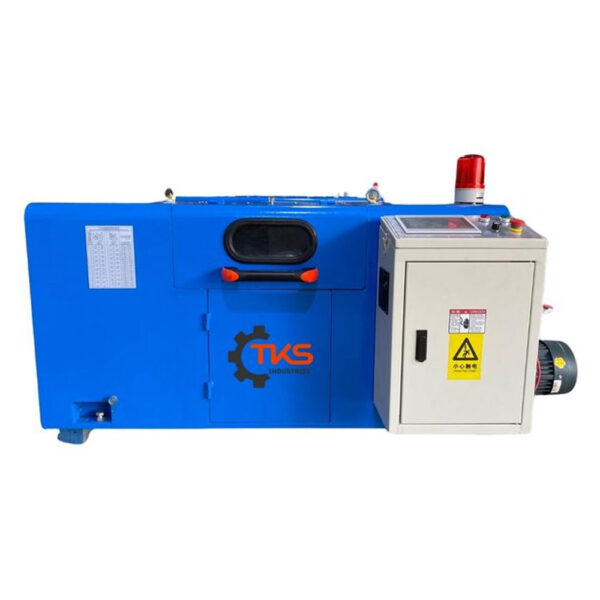

High Speed Double Twist Bunching Machine (300mm) TKS-300
The TKS-300 Bunching Machine is a high-performance machine designed specifically for the precise twisting of copper wires. With an advanced design that supports both “S” and “Z” twisting directions, it delivers unparalleled flexibility and control in wire manufacturing processes. This machine is ideal for industries requiring high-quality wire bunching, including electronics, telecommunications, and power distribution.
Technical Specifications – TKS-300 Bunching Machine (300mm)
| Parameter | Specification |
|---|---|
| Model | TKS-300 |
| Wire Spool Max Size (Diameter x Length) | Φ315×220 mm |
| Twisted Copper Wire Max Section | 0.05mm² – 1.0mm² |
| Twisted Copper Diameter | 0.04 – 0.10 mm |
| Twist Pitch Range | 1.15 – 11.24 mm |
| Twisting Direction | “S” or “Z” direction |
| Twist Bow RPM | 0 – 3500, infinitely adjustable |
| Twist Bow Material | Spring steel tape |
| Injection Rate | 84 cc/s |
| Conductor Elements on Bow | Porcelain or Porcelain + Pulley Guide |
| Motor Power | 4.0 kW, frequency adjustable |
| Take-up Tension Mechanism | Spring clutch control |
| Wire Spool Up Fall Structure | Manual-hydraulic |
| Bearing | Japan NSK |
| Spindle Height Above Ground | 860 mm |
| Machine Size (L x W x H) | 2100 x 1040 x 900 mm |
| Machine Net Weight | 800 kg |
| Power Supply | 3 Phase, 380V, 50Hz |
| Machine Installation Altitude | ≤1000 m |
| Machine Room Temperature | ≤40°C |
| Input Wire Direction | Right-side wire input |
- Description
- Reviews (0)
Description
Product Overview
Capable of handling a wide range of wire sizes, the Bunching Machine TKS-300 offers precise twisting with an adjustable twist pitch range of 1.15 to 11.24 mm. The machine is equipped with a frequency-adjustable motor and spring steel twist bow, ensuring consistent, reliable performance at twist speeds of up to 3500 RPM. Designed for efficiency and durability, it integrates premium components such as Japan NSK bearings and a manual-hydraulic wire spool system.
Key Features
- Versatile Wire Handling:
- Capable of twisting copper wire sections from 0.05mm² to 1.0mm².
- Adjustable twist pitch (1.15 – 11.24 mm) allows precision for different production needs.
- High-Speed Operation:
- Twist bow operates at adjustable speeds up to 3500 RPM, offering flexibility for various production rates.
- Durable Construction:
- Twist bow made from spring steel tape for long-lasting durability.
- Conductors guided with porcelain or porcelain + pulley elements for smooth operation.
- Advanced Control Systems:
- Spring clutch-controlled take-up tension mechanism ensures smooth wire collection.
- Manual-hydraulic wire spool system for efficient spooling.
- Powerful Motor:
- Equipped with a 4.0 kW frequency-adjustable motor for consistent power and speed control.
- Reliable Components:
- Built with Japan NSK bearings for long-term reliability and reduced maintenance.
Applications:
The TKS-300 Bunching Machine is suitable for use in:
- Wire and Cable Manufacturing: Ideal for precise copper wire twisting in the production of cables for various industries.
- Electronics Industry: Perfect for manufacturing copper wires used in electronic devices.
- Telecommunications: Used for producing twisted wires required in communication systems.
- Automotive Wiring Harnesses: Ensures precision in copper wire bunching for automotive applications.
Why Choose the TKS-300 Bunching Machine?
By selecting the TKS-300, you are investing in a machine that delivers:
- Superior Performance: High-speed twisting and versatile handling of a wide range of wire sizes.
- Reliability: Designed with premium components, including Japan NSK bearings, for durability and long-term use.
- Precision: Adjustable twist pitch and speed ensure consistent and accurate production results.
