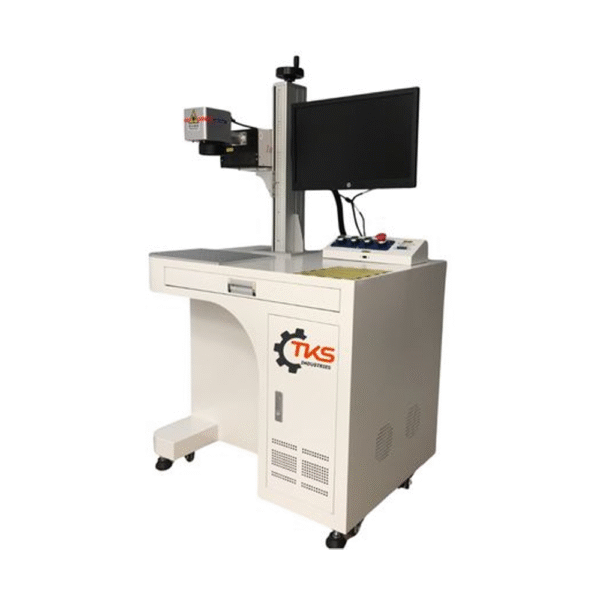

FIBER LASER MARKING MACHINE
₹350,000.00
The Fiber Laser Marking Machine is an advanced marking solution designed to meet high precision and high-speed marking requirements for a variety of industries. With its superior beam quality, high marking speed, and reliable performance, this machine is suitable for marking metals, plastics, ceramics, and more. It is widely used for engraving serial numbers, barcodes, logos, and intricate designs on various materials.
TECHNICAL SPECIFICATIONS AND PARAMETERS
| Specification | Details |
|---|---|
| Laser Module | MAX |
| Laser Power | 20W / 30W / 50W |
| Wavelength | 1060 nm |
| Beam Quality | m² < 1.5 |
| Laser Repeat Frequency | ≤100 kHz |
| Standard Marking Scope | 110×110 mm / 200×200 mm / 300×300 mm |
| Optional Marking Scope | 50×50 mm, 100×100 mm, 150×150 mm |
| Marking Depth | ≤1.2 mm |
| Marking Speed | ≤12000 mm/s |
| Minimum Line Width | 0.01 mm |
| Minimum Character Height | 0.05 mm |
| Repeated Accuracy | ±0.001 mm |
| Consumption Power | ≤500 W |
| Power Supply | 220V / 50Hz / 10A |
- Description
- Reviews (0)
Description
Key Features
- High-Power Laser Module: Equipped with the renowned MAX laser module, available in 20W, 30W, and 50W power options, ensuring excellent marking results with deep engraving capabilities.
- Exceptional Beam Quality: With a beam quality rating of m² < 1.5, the Fiber Laser Marking Machine delivers sharp and detailed engravings, even on small and complex surfaces.
- Fast Marking Speed: Achieves marking speeds of up to 12000 mm/s, making it perfect for high-volume production lines and improving overall productivity.
- Versatile Marking Scopes: Comes with a range of standard marking scopes (110×110mm, 200×200mm, and 300×300mm) and optional sizes, providing flexibility for various marking applications.
- Precise Marking: Capable of producing marks with a minimum line width of 0.01 mm and character heights as small as 0.05 mm, ensuring legibility even for micro-marking applications.
- High Accuracy and Repeatability: With a repeated accuracy of ±0.001 mm, the machine ensures consistent marking results every time, making it ideal for applications requiring precision.
Applications
The Fiber Laser Marking Machine is used in industries such as electronics, automotive, aerospace, medical devices, jewelry, and packaging. It is perfect for marking serial numbers, QR codes, logos, and other identifiers on metal and non-metal materials.
Performance and Flexibility
With multiple power options (20W/30W/50W) and a variety of marking scopes, the machine can be customized to suit diverse marking needs. Its compact size and robust build make it suitable for small workshops as well as large-scale manufacturing facilities.
Why Choose the Fiber Laser Marking Machine?
- High-Precision Marking: Capable of producing detailed and accurate engravings on complex shapes and materials.
- Long Service Life: Fiber lasers have a long operating life, ensuring reliable performance and low maintenance costs.
- Energy Efficient: Consumes less power (≤500W) compared to other laser marking technologies, reducing operational costs.
